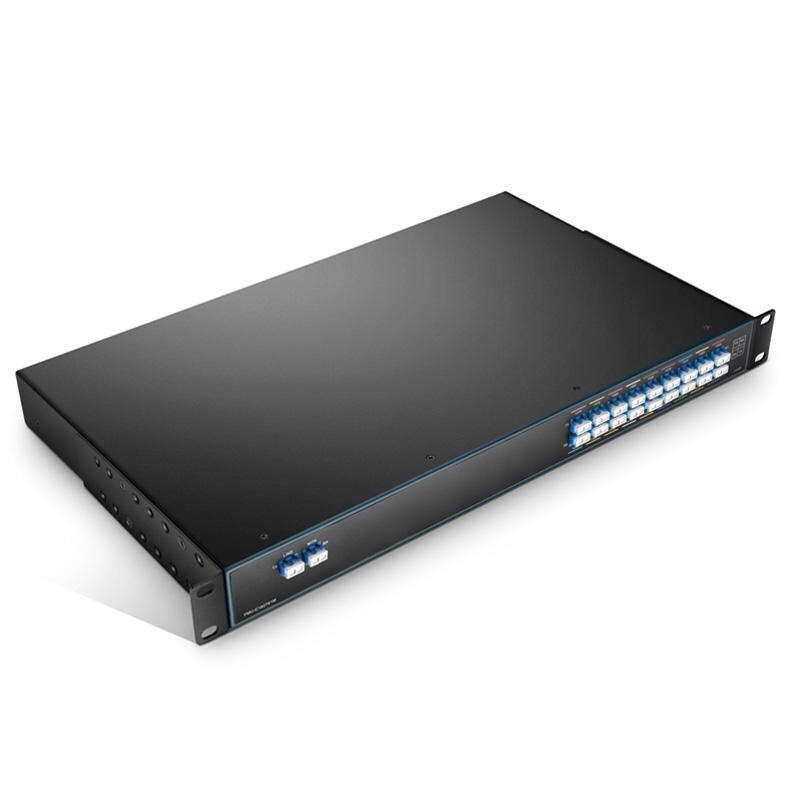

CCWDM 18CH MUX and DEMUX Intdoor

Markenbezeichnung:	Seacent
Modellnummer:	SPCS-18B1215
MOQ:	Verhandelbar
Preis:	negotiable
Zahlungsbedingungen:	L/C, T/T

Ausführliche Information

Produkt-Beschreibung

Ausführliche Information

Herkunftsort:

Guangdong, China

Zertifizierung:

ISO9001,ROHS

Dokumentieren:

Produkt-Beschreibung

CCWDM 18CH MUX and DEMUX Intdoor

Product Overview

CWDM Mux Demux with low end-to-end insertion loss designed for wavelength multiplexing in optical communication networks.

Key Features

Low end-to-end insertion loss
Wide pass band
19" Rack Mount - Chassis
High channel isolation
High stability and reliability
Single Fiber 18 CH CCWDM (Compact CWDM - Free Space Technology)

Applications

Line monitoring
WDM network
Telecommunication
Equipment test areas
Cellular Application
Fiber optical amplifier
Access Network

Product Description

Compact Coarse Wavelength Division Multiplexer (CCWDM) is a mini CWDM module with compact case size designing and features free-space structure. It multiplexes CWDM wavelengths (from 1271nm to 1611nm) to single fiber. Compatible with 3G/4G/5G Nokia, Ericsson, Huawei, ZTE.

Compliance

Compliant with ITU-T G.694.2, CE, RoHS, IP25

Technical Specifications

Parameter	18CH
Operating Wavelength (nm)	1260-1620nm
Channel Wavelength (nm)	1271-1611nm
Channel Spacing (nm)	20
Channel Passband (nm)	CWL +/- 6.5nm
Insertion Loss / without connector (dB)	< 3.0
Insertion Loss / with connector (dB)	< 3.0
Channel Ripple (dB)	≤ 0.5
Minimum isolation (dB) - Adjacent	30
Minimum isolation (dB) - Non-adjacent	45
Polarization Mode Dispersion (PS)	< 0.2
Polarization Dependent Loss (dB)	< 0.2
Directivity (dB)	> 50
Return Loss (dB)	> 45
Maximum Power Handling (mW)	500
Operating Temperature (°C)	-5 ~ +70
Storage Temperature (°C)	-40 ~ 85
Fiber Type	G657A1
Connector	LC/UPC port, other optional
Package dimension (mm)	Indoor box, 19" or 23" Rack Mount - Chassis
Installation accessories	Complete installation accessories included
Material	Powder-coated metal

Operating Wavelengths (center, nm)

Ch1: 1291nm
Ch2: 1331nm
Ch3: 1371nm
Ch4: 1411nm
Ch5: 1451nm
Ch6: 1491nm
Ch7: 1531nm
Ch8: 1571nm
Ch9: 1611nm

Ch1: 1271nm
Ch2: 1311nm
Ch3: 1351nm
Ch4: 1391nm
Ch5: 1431nm
Ch6: 1471nm
Ch7: 1511nm
Ch8: 1551nm
Ch9: 1591nm

Umbauten:

Einzelheiten Zu Den Produkten

Haus > Produits >

CWDM Mux Demux

CCWDM 18CH MUX and DEMUX Intdoor

Alle Kategorien

CCWDM 18CH MUX and DEMUX Intdoor

Markenbezeichnung:	Seacent
Modellnummer:	SPCS-18B1215
MOQ:	Verhandelbar
Preis:	negotiable
Zahlungsbedingungen:	L/C, T/T

Ausführliche Information

Produkt-Beschreibung

Ausführliche Information

Herkunftsort:

Guangdong, China

Markenname:

Seacent

Zertifizierung:

ISO9001,ROHS

Modellnummer:

SPCS-18B1215

Dokumentieren:

1. Seacent CCWDM 18CH 2026.pdf

Min Bestellmenge:

Verhandelbar

Preis:

negotiable

Lieferzeit:

5-8 Werktage

Zahlungsbedingungen:

L/C, T/T

Produkt-Beschreibung

CCWDM 18CH MUX and DEMUX Intdoor

Product Overview

CWDM Mux Demux with low end-to-end insertion loss designed for wavelength multiplexing in optical communication networks.

Key Features

Low end-to-end insertion loss
Wide pass band
19" Rack Mount - Chassis
High channel isolation
High stability and reliability
Single Fiber 18 CH CCWDM (Compact CWDM - Free Space Technology)

Applications

Line monitoring
WDM network
Telecommunication
Equipment test areas
Cellular Application
Fiber optical amplifier
Access Network

Product Description

Compliance

Compliant with ITU-T G.694.2, CE, RoHS, IP25

Technical Specifications

Parameter	18CH
Operating Wavelength (nm)	1260-1620nm
Channel Wavelength (nm)	1271-1611nm
Channel Spacing (nm)	20
Channel Passband (nm)	CWL +/- 6.5nm
Insertion Loss / without connector (dB)	< 3.0
Insertion Loss / with connector (dB)	< 3.0
Channel Ripple (dB)	≤ 0.5
Minimum isolation (dB) - Adjacent	30
Minimum isolation (dB) - Non-adjacent	45
Polarization Mode Dispersion (PS)	< 0.2
Polarization Dependent Loss (dB)	< 0.2
Directivity (dB)	> 50
Return Loss (dB)	> 45
Maximum Power Handling (mW)	500
Operating Temperature (°C)	-5 ~ +70
Storage Temperature (°C)	-40 ~ 85
Fiber Type	G657A1
Connector	LC/UPC port, other optional
Package dimension (mm)	Indoor box, 19" or 23" Rack Mount - Chassis
Installation accessories	Complete installation accessories included
Material	Powder-coated metal

Operating Wavelengths (center, nm)

Rx:

Ch1: 1291nm
Ch2: 1331nm
Ch3: 1371nm
Ch4: 1411nm
Ch5: 1451nm
Ch6: 1491nm
Ch7: 1531nm
Ch8: 1571nm
Ch9: 1611nm

Tx:

Ch1: 1271nm
Ch2: 1311nm
Ch3: 1351nm
Ch4: 1391nm
Ch5: 1431nm
Ch6: 1471nm
Ch7: 1511nm
Ch8: 1551nm
Ch9: 1591nm
